E5 Dynamic Single Monitor Arm
Single Monitor Arm
HAT Collective E5 Dynamic Single Monitor Arm
Dynamic Screen Positioning for Modern Workstations
The HAT Collective E5 Dynamic Single Monitor Arm provides smooth, flexible adjustment of monitor height, depth, angle and orientation.
Designed for contemporary commercial workstations, the E5 allows the screen to be repositioned as the user, task or working posture changes, while its top-down mounting system and quick-connect components simplify installation and future screen changes.
E5 Dynamic Single Monitor Arm – a next gen monitor system built for simplicity, efficiency, and compatibility.
Fast Assembly: innovative top-down mount, one tool installation, and convenient integrated tool storage makes E5 installation quick and easy.
Easy Adjustments: Rotation stop adjustments are made externally for ease of use. No need to disassemble the arm, simply choose the amount of rotation from 90, 180, and 360 degrees.
Painless Configurability: With 12 components and universal push-button quick connections, E5 offers infinite possibilities for customization.
Tension Indicator: Built-in tension indicator allows the user to pre-counterbalance arms based on monitor weight prior to installation.
Quick-Disconnect: Monitors can be easily changed with the quick-disconnect integrated on the VESA adapter.
Cable Management: Cables are routed down along the arm or pole keeping your workspace clutter free.
Key Features
- single dynamic monitor arm
- supports screens up to 49"
- standard capacity up to approximately 11.3 kg / 25 lb
- high-capacity configuration available up to approximately 20.4 kg / 45 lb
- approximately 267 mm / 10.5" height adjustment
- portrait or landscape positioning
- three rotation joints
- externally adjustable 90° / 180° / 360° rotation stops
- built-in tension indicator
- quick-disconnect VESA adapter
- VESA 75 × 75 / 100 × 100 mm
- top-down C-clamp or grommet mounting
- one-tool installation with integrated tool storage
- integrated cable management
- suitable for desktops up to approximately 38 mm / 1.5" thick
- Black, White or Silver finishes
- 15-year manufacturer warranty

Screen
Eye-line
Environment
.png)

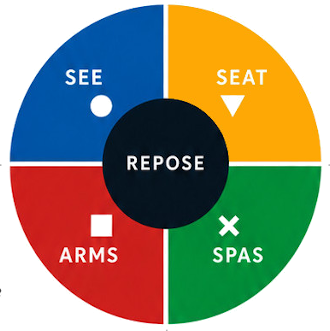

What this means for you when the 4 elements are aligned
| Corrected screen alignment → reduced neck strain | - S E E™ |
| Better pelvic support → less lower back fatigue | - S E A T™ |
| Arm positioning → reduced shoulder load | - A R M S™ |
| Movement support → reduces static load | - S P A S™ |
R E P O S E™ Outcome
The HAT Collective E5 supports Natural R E P O S E™ by allowing the display to follow changes in posture, task and visual demand.
.png)
Screen Size Up to 49 in.
Height Adjustment 10.5 in.
Mount C-Clamp, Grommet
Mount Kits (optional) Thru-Desk Conversion Kit
Pivot Landscape/Portrait
Rotation Three rotation joints
Weight Capacity 0-25 lbs., 5-45 lbs.
Wire Management Yes
Worksurface Compatibility 2.25 in. minimum grommet hole diameter, Up to 1.5 in. desk thickness
VESA Compatibility 75mm & 100mm quick-release adapter included
E5 Dynamic Single Monitor Arm
- supports screens up to 49"
- dynamic height and depth adjustment
- quick-release VESA mounting
- external 90° / 180° / 360° rotation stops
- integrated cable management
- 15-year warranty
Who Is It For?
Suitable for users who:
- spend extended periods working at a monitor
- need greater control over screen height and viewing distance
- alternate between sitting and standing
- use larger or heavier contemporary displays
- regularly reposition the screen for different tasks
- work at shared or evolving workstation setups
- want a premium commercial monitor-arm solution
Problem to Solve
A fixed monitor position can leave the screen too low, too high, too close or too far away.
Users may compensate by leaning forward, extending the neck or moving away from a supported working position.
The E5 allows the screen to move instead.
Its dynamic arm lets the monitor be brought closer, raised, lowered, tilted or rotated as viewing requirements change, while adjustable rotation stops help control how far the arm can move around the workstation.
S E E™ — Primary
Visual Demand
The E5 supports S E E™ by helping users:
- establish an appropriate screen height
- control viewing distance
- adjust screen tilt and orientation
- reduce unnecessary forward head movement
- reposition the display when moving between sitting and standing
- adapt the screen position as tasks and monitor technologies change
